Khoom Description
Low Altitude Radar yog qhov kev paub txog kev tshaj lij thiab thaum ntxov- ceeb toom qhov system tsim los rau qis- ya, me me radar hla- ntu (RCS) lub hom phiaj xws li micro-UAVs, missiles caij nkoj, thiab qis - dav hlau qhov siab. Nws muab kev ntseeg siab, tiag tiag - lub sijhawm soj ntsuam los daws cov teeb meem loj zuj zus ntawm qhov qis - qhov siab siab airspace kev ruaj ntseg.Lub Low Altitude Radar series suav nrog S-Band Small-Target Early Warning Radar thiab X-Band 2D Phased Array Low-Altitude Detection Radars (ib leeg-lub ntsej muag thiab plaub fab-fim), ua kom zoo rau qhov sib txawv thiab kev xa tawm scenarios.
Ua nyob rau hauv Suav teb thiab ua raws li ISO, CE, FCC, thiab MIL -STD-810H, cov tshuab no ua ke nrog theem theem-array beam steering, adaptive clutter suppression, thiab multi-target tracking, kom ruaj khov kev ua tau zoo nyob rau hauv ib puag ncig nyuaj xws li nag, huab cua, thiab hauv nroog.
Siv dav hauv kev ruaj ntseg hauv tshav dav hlau, kev soj ntsuam ciam teb, kev tiv thaiv kev tiv thaiv tseem ceeb, loj- qhov xwm txheej kev nyab xeeb, thiab tub rog qis- tiv thaiv qhov siab, Low Altitude Radar muab 24/7 tsis tu ncua ceeb toom ntxov tiv thaiv qis - qhov siab siab.
Cov khoom specification
|
Qeb Parameter |
S-Band Small-Target Early Warning Radar |

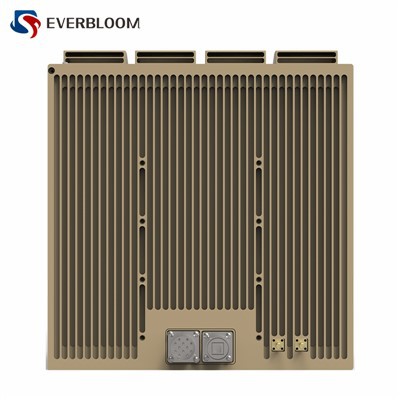

X-Band 2D Phased Array Low Altitude Radar |
X-Band 2D Phased Array Quad-Face Low Altitude Radar |
|
Kev khiav hauj lwm zaus Band |
S-Band (2.9-3.1GHz) |
X-Band (9.3-9.5GHz) |
X-Band (9.3-9.5GHz) |
|
Radar System |
Pulse Doppler |
Active Phased Array |
Active Phased Array (Quad-Face) |
|
Target RCS Detection Capability |
Ntau dua lossis sib npaug rau 0.01㎡ (kev kuaj pom qhov tshwm sim Ntau dua lossis sib npaug li 90%) |
Ntau dua lossis sib npaug rau 0.001㎡ (kev kuaj pom qhov tshwm sim Ntau dua lossis sib npaug li 95%) |
Ntau dua lossis sib npaug rau 0.001㎡ (kev kuaj pom qhov tshwm sim Ntau dua lossis sib npaug li 95%) |
|
Max. Kev kuaj pom ntau |
Ntau dua lossis sib npaug li 25km (@0.1㎡ lub hom phiaj) |
Ntau dua lossis sib npaug li 18km (@0.01㎡ lub hom phiaj) |
Ntau tshaj lossis sib npaug rau 18km (@0.01㎡ lub hom phiaj, 360℃kev pab) |
|
Detection Altitude Range |
50m-6000m |
30m-5000m |
30m-5000m |
|
Azimuth Kev Pabcuam |
0℃-360℃(txheej txheem scanning) |
0℃-120℃(electronic scanning) |
0℃-360℃(quad-face electronic scanning) |
|
Kev Pab Cuam Siab |
0℃-20 degree |
0℃-30 degree |
0℃-30 degree |
|
Lub Hom Phiaj Tracking Capacity |
Ntau dua lossis sib npaug rau 100 lub hom phiaj ib txhij |
Ntau dua lossis sib npaug rau 200 lub hom phiaj ib txhij |
Ntau dua lossis sib npaug rau 300 lub hom phiaj ib txhij |
|
Kev tiv thaiv -Jamming Capability |
Frequency agility, notch filtering |
Adaptive beamforming, qhov chaw -time adaptive processing (STAP) |
Adaptive beamforming, STAP, ultra-low sidelobe |
|
Kev siv fais fab |
Tsawg dua lossis sib npaug li 800W |
Tsawg dua los yog sib npaug rau 1200W |
Tsawg dua lossis sib npaug li 1500W |
|
Ua haujlwm kub |
-40℃rau +60 degree |
-40℃rau +65 degree |
-40℃rau +65 degree |
|
txheeb ze humidity |
Tsawg dua lossis sib npaug li 95% (tsis yog-condensing) |
Tsawg dua lossis sib npaug li 98% (tsis yog-condensing) |
Tsawg dua lossis sib npaug li 98% (tsis yog-condensing) |
|
Qib tiv thaiv |
IP65 |
IP66 |
IP66 |
Nta
| High-precision me- pom lub hom phiaj |
S-band ntes cov hom phiaj mus rau0.01 m² RCS(Ntau dua los yog sib npaug rau 90% kev kuaj pom qhov tshwm sim). X-band ntes tauultra- cov hom phiaj me me kom tsawg li 0.001 m² RCS(Ntau dua lossis sib npaug li 95%), suav nrogmicro- drones hauv qab 2 kg. |
| Ntau-Band kev pab them nqi rau ntau yam xwm txheej |
S-pab: Muaj zog tiv thaiv - jamming thiab tag nrho - huab cua kev ua haujlwm ntev - thaj tsam ciam teb thiab kev soj ntsuam hauv hiav txwv. X-pab: Kev daws teeb meem siab nrog kev ntsuas hluav taws xob nrawm (tsawg dua lossis sib npaug li 1 ms), zoo tagnrho rau tshav dav hlau thiab hauv nroog ib puag ncig. Quad-face X-band: 360℃tag nrho cov kev pab cuamtsis muaj kev sib hloov tshuab. |
| Advanced anti-clutter & tiv thaiv- jamming processing |
CFAR technologysuppresses av thiab hiav txwv clutter. X- pab pawg qauvSTAP thiab adaptive beamformingtiv thaiv txhob txwm cuam tshuam. |
| Siab -muaj peev xwm ntau- lub hom phiaj taug qab | Khiav100+ lub hom phiaj (S-band), 200+ (X-band ib lub ntsej muag), thiab300+ (quad-lub ntsej muag), haum rau drone swarm nrhiav. |
Qhov zoo
Cov kws tshaj lij kev ua thawj coj
Kev paub ntau yam radar thev naus laus zis thiab txhawb nqa los ntawm cov ntawv pov thawj hauv tebchaws, lub tuam txhab siv cov kev tshaj lij R & D platforms kom tsis tu ncua tsav cov khoom lag luam tshiab thiab txhim kho lub sijhawm ntev - kev ntseeg tau.
Extensive kev lag luam kev
Nrog rau ntau tshaj kaum xyoo ntawm kev mob siab rau ntawm radar thev naus laus zis, lub tuam txhab muaj kev nkag siab tob txog cov xwm txheej ntawm daim ntawv thov thoob plaws ntau qhov kev lag luam, ua rau kev xa khoom ruaj khov, siv tau, thiab siv tau zoo heev - cov kev daws teeb meem zoo sib xws.
Kev pabcuam
Kev pab txhawb nqa
Kev pab txhawb nqa (cov qauv khoom, kev qhia ua haujlwm, kev daws teeb meem zoo);
Cov ntaub ntawv ntawm cov khoom (cov neeg siv phau ntawv, cov yeeb yaj kiab ua haujlwm, daim ntawv teev npe)
Ntiaj teb no Warranty Services
2-xyoo warranty thoob ntiaj teb;
Kev kho dawb lossis hloov cov khoom siv vim muaj teeb meem ntawm cov khoom zoo; Tsis suav nrog kev puas tsuaj los ntawm tib neeg kev ua yuam kev lossis kev siv tsis raug.
Daim ntawv thov
Critical Infrastructure
Kev soj ntsuam ciam teb
Loj -Txheej xwm txheej xwm ruaj ntseg
Tshav dav hlau Airspace Security
FAQ
Q: 1.Dab tsi yog qhov txawv ntawm S-Band thiab X-Band qauv?
A: S-Band qauv ua tau zoo nyob rau hauv ntev- ntau yam (Ntau dua lossis sib npaug li 25km) thiab tag nrho- huab cua ntsuas, tsim nyog rau kev soj ntsuam ciam teb / hiav txwv; X-Band qauv muab kev daws teeb meem siab dua (0.001㎡ lub hom phiaj nrhiav kom tau) thiab ceev hluav taws xob scanning, zoo tagnrho rau cov tshav dav hlau / hauv nroog.
Q: X-Band quad- lub ntsej muag qauv puas tuaj yeem ua tiav 360℃kev pabcuam?
A: Yog, nws siv plaub theem array panels teem nyob rau hauv ib lub voos xwmfab rau hluav taws xob scanning, realizing 360℃tag nrho azimuth kev pab them nqi tsis muaj txhua yam rotation, tshem tawm kev soj ntsuam qhov muag tsis pom qhov chaw.
Q: Dab tsi yog lub hom phiaj yam tsawg kawg nkaus RCS lub radar tuaj yeem ntes tau?
A: S-Band qauv kuaj pom ntau dua lossis sib npaug rau 0.01㎡ lub hom phiaj, X-Band qauv Ntau dua lossis sib npaug rau 0.001㎡ (xws li 2kg micro-}UAVs), nrog rau kev kuaj pom qhov tshwm sim ntau dua lossis sib npaug li 90% thiab Ntau dua lossis sib npaug li 95% ntsig txog
Q: Puas yog lub radar ua haujlwm hauv nag lossis pos huab?
A: Txhua tus qauv ua tau raws li IP65 / IP66 tiv thaiv qib thiab siv los tiv thaiv- huab cua cuam tshuam algorithms; S-Band qauv ua tau zoo tshaj plaws nyob rau hauv los nag hnyav (ntau npaum li cas los nag tsawg dua los yog sib npaug li 50mm/h), X-Band qauv nyob rau hauv lub teeb pos huab (pom ntau dua los yog sib npaug zos rau 200m).
Q: Muaj pes tsawg lub hom phiaj tuaj yeem taug qab radar ib txhij?
A: S-Band: Ntau dua lossis sib npaug rau 100 lub hom phiaj; X-Band ib leeg- ntsej muag: Ntau dua lossis sib npaug rau 200 lub hom phiaj; X-Band quad-face: Ntau dua lossis sib npaug rau 300 lub hom phiaj, txhawb nqa UAV swarm nrhiav.
Q: Cov qauv muaj peev xwm tiv thaiv- jamming dab tsi?
A: S-Band: Zaus agility, notch filtering; X-Band: Adaptive beamforming, STAP (chaw-time adaptive processing), tiv thaiv lub suab nrov thiab kev dag ntxias jamming.
Q: Lub radar xav tau dab tsi fais fab mov?
A: Txhua tus qauv txhawb nqa ob- lub zog tawm tswv yim: AC 220V (50 / 60Hz) lossis DC 24V, nrog lub zog thaub qab siv tau rau kev ua haujlwm tsis cuam tshuam.
Q: Lub radar puas tuaj yeem ua ke nrog lwm lub tshuab kev ruaj ntseg?
A: Yog, nws txhawb Ethernet kev koom ua ke nrog CCTV, lub tswb nrov, thiab kev tswj hwm kev ruaj ntseg hauv nruab nrab, ua kom muaj kev sib koom ua ke saib xyuas thiab hais kom ua.
Q: Dab tsi yog qhov kev ua haujlwm kub ntawm lub radar?
A: S-Band: -40℃rau +60℃; X-Band: -40℃rau +65 degree, haum rau huab cua huab cua (piv txwv li, txias qaum teb thaj tsam, kub suab puam).
